Or how to modify/rekey BMW case lock to match the desired key
Now, who wouldn’t love these DIY tutorials? You simply can’t get enough of them on the internet, especially good ones. This detailed photo tutorial of rekeying BMW case lock is the first post in our workshop category, and we’re so excited to show it to you.
A lot of our friends approached us with this question – how do I change my BMW case lock to match my desired key? Well, it’s probably a lot easier than you think and it sure is handy to have only one key for all the locks on your bike, especially during motorcycle trips. And you shouldn’t worry about anything going wrong, because we did this quite a few times and it’s a safe method. Now let’s get our hands dirty.
Part 1 – Start here if you have a used case and want to rekey it so it fits your desired key. If you have a new case with the lock ready to be rekeyed, then scroll down to part 2 of this post.
1. Open the case and start by removing three Philips screws on the inside of the lid (screws are marked with red circles on the first photo):
2. Let’s have a closer look at the first screw:
3. The second screw:
4. And the third one:
5. With screws removed, carefully lift out the latch mechanism panel:
6. On the backside of the latch panel, make sure that you can see the round yellow tab that locks the handle:
7. Carefully remove the yellow tab using a knife or some other thin metal tool:
8. Now you can see a small metal tab which keeps the lock from coming out:
9. Now put the key in the lock and use a knife again to depress the tab and gently pull out the lock with your fingers:
10. You should be able to easily pull the lock all the way out. With the key previously inserted, you’ve made sure that the tumblers stay in place for now:
Part 2 – Continue through these steps if you’ve followed all the ones described above. Start from here if you have a new BMW case with a lock ready to be rekeyed.
11. To continue this process you might need some additional tumblers (depending on the key). You can get them at the nearest BMW dealer. If you bought a new lock, first make sure that you throw the manual into thrash. Unfortunately, it’s useless. Now you may continue. Unpack the contents and sort the tumblers (sometimes called followers) in their numerical order (they are all marked with a different number). Make sure that you always know which one is the latching tumbler (sometimes called drill out protection or stop plate). In the photo below it’s in the topmost right position, between the lock and the key. You’ll notice how similar it is to the Greek letter ‘’Pi’’.
As we’ve already mentioned, all the tumblers are numbered, but there are only three types (numbers) – 1, 2, and 3. Plus the latching tumbler which you have only one so be careful not to lose it:
12. First, insert little springs (pressure springs) into round holes as shown. Before you do this, it’s recommended to apply a small amount of lubricant to the cylinder:

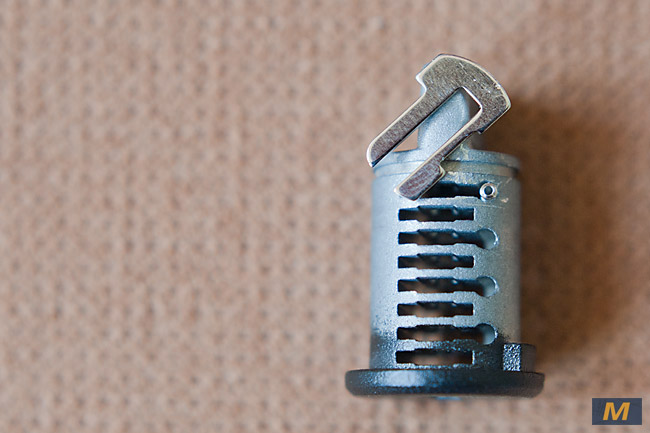

13. As you can see, there are 8 slots in the lock cylinder. The first one (topmost on photo) is the one for the special, latching tumbler (or stop plate). Pay attention that the slot next to the latching tumbler’s one (the second from above on photo) STAYS EMPTY! And that means no tumbler and no spring in this one. Now make sure that you have inserted the springs and the tumblers in all the other slots (don’t bother with the numbers for now). The picture below shows where to put the latching tumbler:
14. Now insert your desired key into the lock. Have a look at the lock from the side, and check which of tumblers are protruding out. You’ll probably see something as shown on the photo below. What you have to do now, is to replace the protruding tumblers (ones that didn’t go all the way in) with the ones that have a different number engraved. Pull out the key and replace them. The ones that were all the way in with the key inserted should stay in their slots. Feel free to play around until all of them fit in perfectly, while the key is in the lock. Remember that the only one that should peep out is the latching tumbler!
15. Keep in mind that the left one is the latching tumbler and it should peep out a little. The slot next to it is empty. When you succeed, your lock will look like the one shown on the photo below:
Part 3 – putting the lock back into its place and assembling the case back into its original state.
16. With the key inserted, push the lock back into the barrel. You’ll have to give it a 180 rotation, so it can go all the way in:
17. You should hear a ‘’click’’ sound which means that the special latching tumbler is in right place, and the lock fits perfectly:
18. Try pulling out the key. If you can’t do this, then you’ve probably inserted a tumbler into the slot that should remain empty. If that’s so, then go through step 9, and empty the slot (the one next to latching tumbler).
19. When the lock is rekeyed, be sure to put back into place the yellow tab from steps 6 and 7, and then screw in the 3 screws and you’re done!
Congratulations! You have mastered the art of rekeying BMW case locks. We hope that it didn’t take you too long and that it was worth it. Feel free to ask any questions, we’ll be glad to help. If you have any suggestions for our workshop category, than shoot in the comments section and we’ll make a note. We hope that this was helpful and stay tuned for more.
